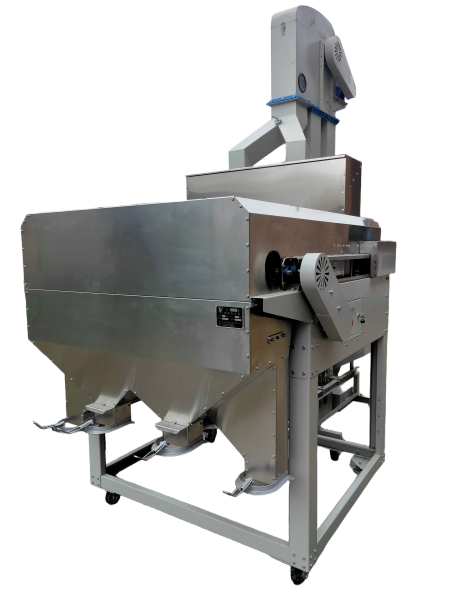

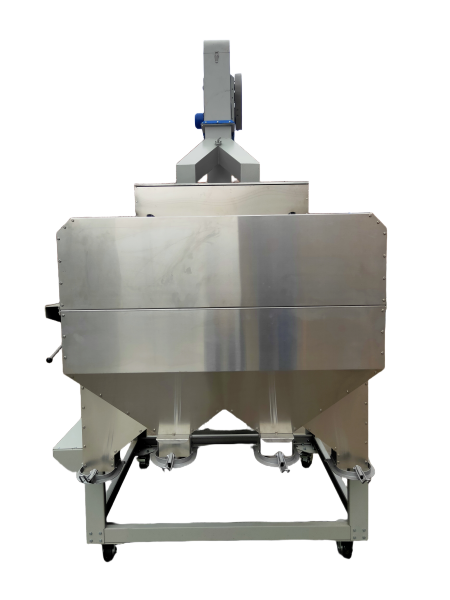

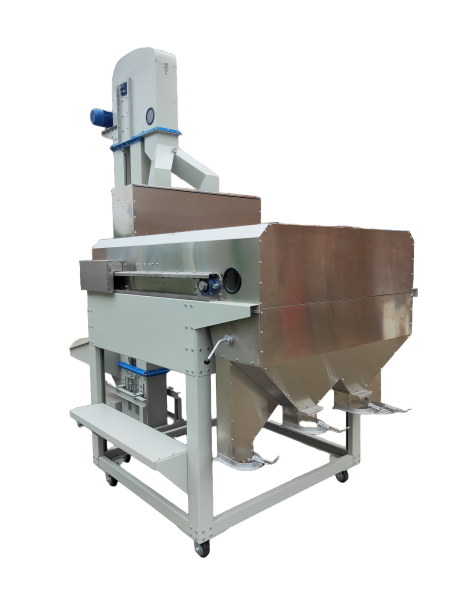

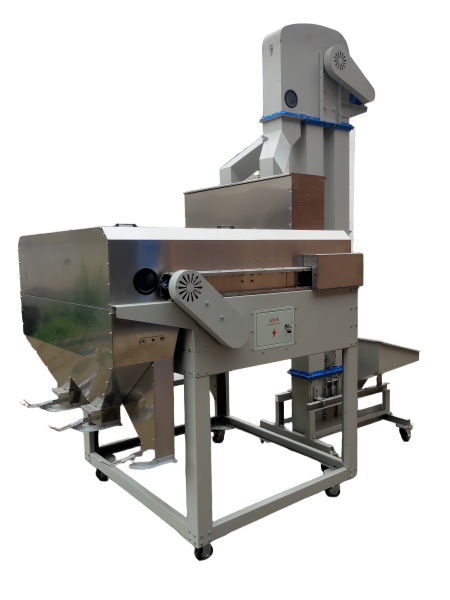

Separator Magnetic
Model: 5CX-5
It is used to remove lumps and metal impurities from raw material. When materials are placed in a strong magnetic field closed,theywill form a stable parabolic motion.Due to the different intensity of attraction of the magnetic field, the clods and the grains will be separated through the two outlets.
Detailed Description
1. The body and sheet are made of 201 stainless steel. (304 can be customized)
2.The magnetic roller is more than 17,000 gauss,and made of 304 stainless steel.
3. Band width is 1300mm, which ensures the capacity and improves the effect.
4. Equipped with VFD (variable frequency drive), convenient to adjust to the speed.
Name | Model | Size of belt (mm) | Power (kw) | Capacity (t/h) | Weight (kg) | Dimension (mm) | Voltage |
|---|---|---|---|---|---|---|---|
Separator Magnetic | 5CX-5 | 1300 | 0.75 | 5 | 600 | 1850*1850*2160 | 220V/440V 60HZ |
Separator Magnetic | 5CX-10 | 1300 | 1.5 | 10 | 800 | 2350*1850*2400 | 220V/440V 60HZ |
