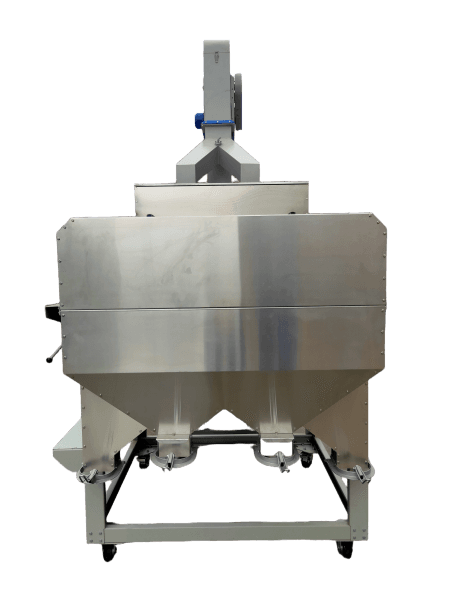

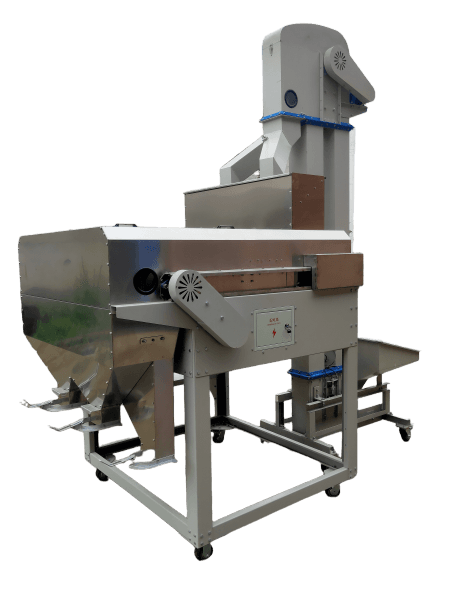

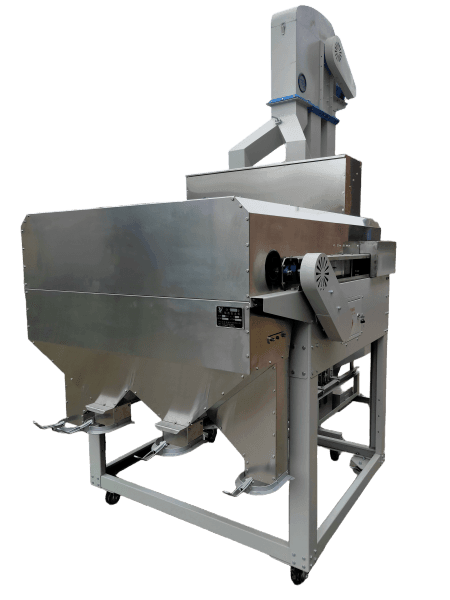

Magnetic Separator for Grains | Metal and Soil Remover
Model: 5CX-5
Magnetic Separator for Grains | Metal and Soil Remover The Magnetic Separator for Grains is a professional machine designed for the pre-cleaning of cereals and legumes. It efficiently removes soil clods, stones, and metal contaminants from raw grains, protecting your entire processing line and improving the commercial purity of the final product. How It Works It features a high-intensity magnetic field. The material flows in a stable parabolic trajectory. Metal parts and clods are automatically separated from the clean grain. Key Advantages - Effective removal of metals, soil clods, and stones - Protects your processing equipment - Increases grain purity and market value - Robust structure with low maintenance - Compatible with cleaners and milling plants
Detailed Description
1. The body and sheet are made of 201 stainless steel. (304 can be customized)
2.The magnetic roller is more than 17,000 gauss,and made of 304 stainless steel.
3. Band width is 1300mm, which ensures the capacity and improves the effect.
4. Equipped with VFD (variable frequency drive), convenient to adjust to the speed.
Name | Model | Size of belt (mm) | Power (kw) | Capacity (t/h) | Weight (kg) | Dimension (mm) | Voltage |
|---|---|---|---|---|---|---|---|
Separator Magnetic | 5CX-5 | 1300 | 0.75 | 5 | 600 | 1850*1850*2160 | 220V/440V 60HZ |
Separator Magnetic | 5CX-10 | 1300 | 1.5 | 10 | 800 | 2350*1850*2400 | 220V/440V 60HZ |
