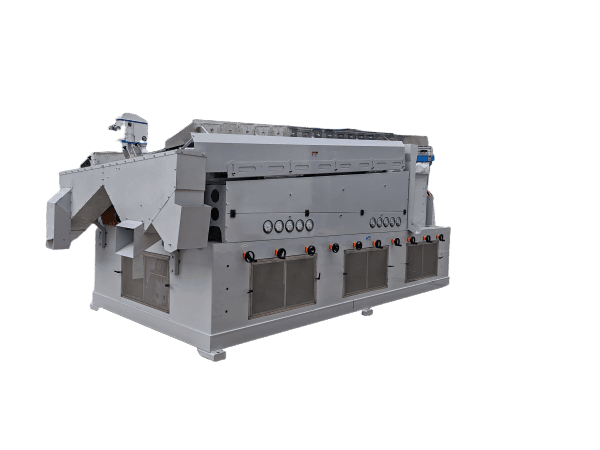

Gravity Table Density Separator for Beans, Chickpeas and Legumes
Model: 5XZ-8C
Gravity Table Density Separator for Beans, Chickpeas and Legumes The gravity table density separator is a fine selection device for grains and seeds. It is used to remove light impurities, sprouted, insect-infested, moldy or carbon-affected grains by separating them according to their density. Ideal for legumes such as beans and chickpeas, as well as seeds and grains. Its precision is higher than conventional sieves, allowing separation of particles with similar densities. It features an integrated suction system and vibration control for precise process adjustment. Features - Density-based separation for grains and legumes - Removes defective and damaged seeds with high precision - Integrated suction system for dust control - Control panel to adjust separation according to the product - Industrial equipment for grain and seed processing
Detailed Description
1. By adjusting the wind volume and frequency, a proportion of the clean and rejected grains will be separated.
2. Primarily used to remove damaged, insect-ridden, incomplete, moldy, etc., grains, improving purity after the pre-cleaning process. Applicable to all types of seeds, grains, and beans.
3. At the top of the table, an outlet is designed to remove impurities with a higher density than the clean grain.
4. The vibration system has a VFD (variable frequency drive) to adjust the frequencies for different types of grains.
Name | Model | Size of sieve (mm) | Power (kw) | Capacity (t/h) | Weight (kg) | Dimension (mm) | Voltage |
|---|---|---|---|---|---|---|---|
Gravimétrica | 5XZ-8 | 3150*1380 | 13 | 6 | 1750 | 5100*2050*3450 | 220V/440V 60HZ |
5XZ-8C | 3150*1380 | 14 | 8 | 1900 | 5100*2050*3450 | 220V/440V 60HZ | |
5XZ-15 | 4900*2200 | 25 | 12 | 2500 | 5016*2300*2000 | 220V/440V 60HZ |
