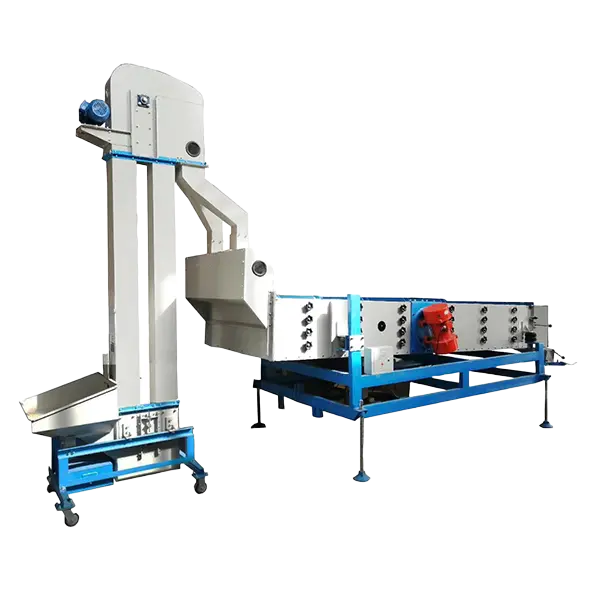

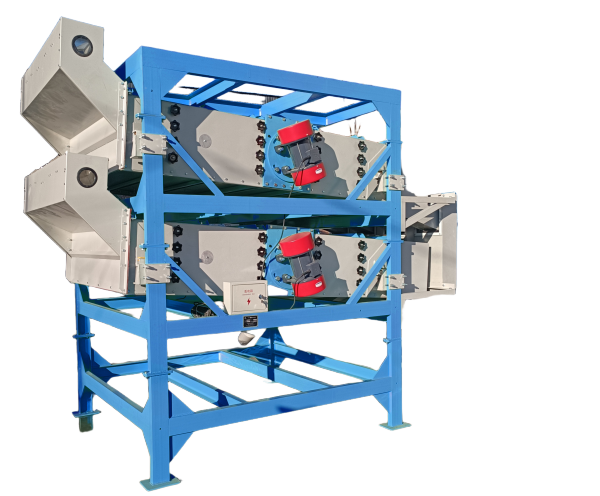

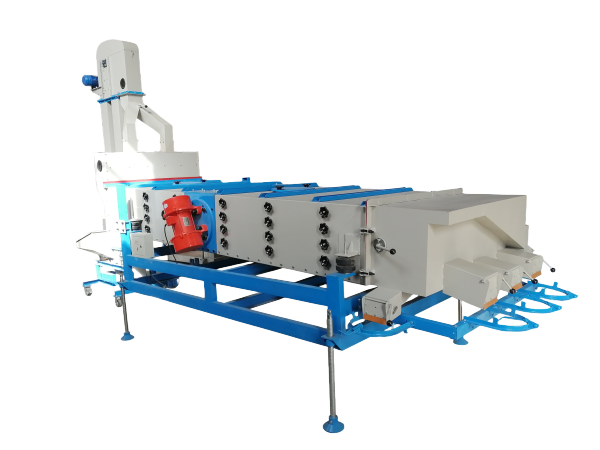

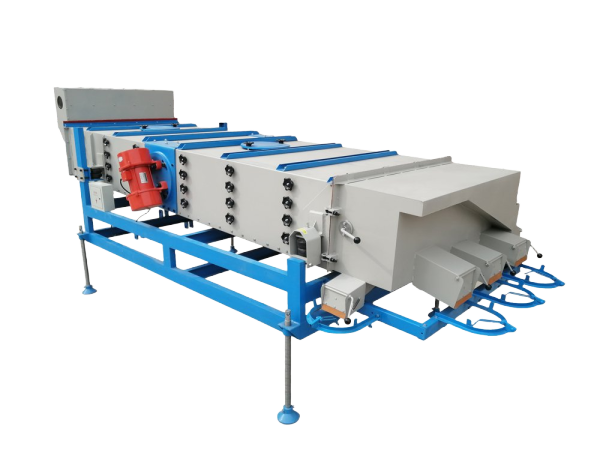

Grading Machine
Model: 5XFJ-10C
The classifier is composed of a screen box and a vibration motor,generating the vibration movement to separate the grain into different sizes.
Detailed Description
The 5XFJ series classifier is a professional device for separating materials by particle size. It can remove large and small impurities based on differences in diameter, thickness, and other dimensional variations of the particles, or separate materials into large, medium, and small particles. It is widely used for various granular materials such as beans, wheat, corn, vegetable seeds, sunflower seeds, nuts, and minerals.
Name | Model | Size Sieve (mm) | Layer | Power (kw) | Capacity (t/h) | Weight (kg) | Dimension (mm) | Voltage |
|---|---|---|---|---|---|---|---|---|
Grading Machine | 5XFJ-7.5B | 1250*2400 | 3 | 1.5 | 7.5 | 1200 | 3620*1850*1680 | 220V/440V 60HZ |
5XFJ-7.5C | 1250*2400 | 4 | 1.5 | 7.5 | 1260 | 3620*1850*1805 | 220V/440V 60HZ | |
5XFJ-10B | 1500*2400 | 3 | 1.5 | 10 | 1400 | 3620*2100*1680 | 220V/440V 60HZ | |
5XFJ-10C | 1500*2400 | 4 | 1.5 | 10 | 1470 | 3620*2100*1805 | 220V/440V 60HZ | |
5XFJ-20C | 3000*1500 | 6 | 4.4 | 20 | 3600 | 3800*2300*4600 | 220V/440V 60HZ |
