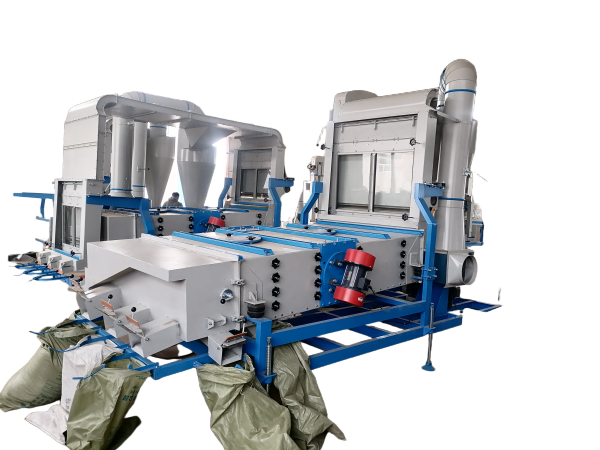

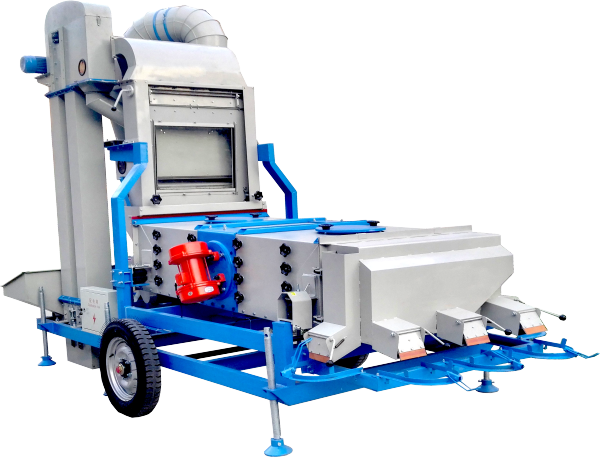

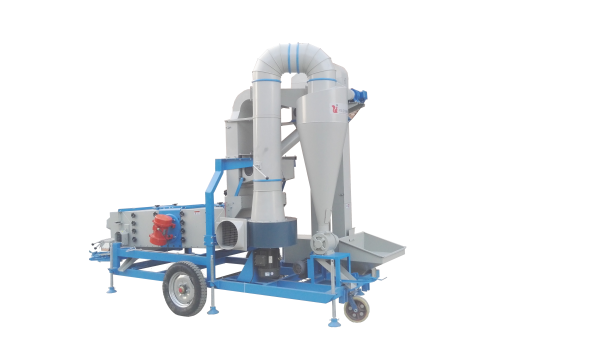

Air-screen Cleaner
Model: 5XFS-10C
The 5XFS series air screen is a machine that integrates lifting, air separation, dust removal, and screening. Materials enter the air filter via an elevator, where lightweight impurities are removed based on weight. The material then enters a classifier to separate large, medium, and small particles according to size.
Detailed Description
1. Perforación de alta precisión, orificios de tamiz precisos
2. Reemplazo de tamiz portátil
3. Adecuado para cribar y clasificar diversos materiales
Name | Model | Size of sieve (mm) | lLayer | Power (kw) | Capacity (t/h) | Weight (kg) | Dimension (mm) | Voltage |
|---|---|---|---|---|---|---|---|---|
Cribadora con pantalla de aire | 5XFS-7.5B | 1250*2400 | 3 | 8.5 | 7.5 | 1800 | 5100*2050*3450 | 220V/440V 60HZ |
5XFS-7.5C | 1250*2400 | 4 | 8.5 | 7.5 | 1830 | 5100*2050*3450 | 220V/440V 60HZ | |
5XFS-10B | 1500*2400 | 3 | 10.5 | 10 | 2000 | 5100*2300*3600 | 220V/440V 60HZ | |
5XFS-10C | 1500*2400 | 4 | 10.5 | 10 | 2200 | 5100*2300*3600 | 220V/440V 60HZ |
